SATEC digital substation solutions

Digital substations use digital communication and IEC 61850-based architectures to integrate measurement, monitoring and automation functions in power systems.
SATEC solutions for digital substations are used for measurement, analysis, communication and data processing in substations and other power facilities. The focus is on digitizing analog signals, equipment interoperability and connecting meters with supervisory, protection and control systems.
For digital substations, support for communication protocols used in power systems is particularly important. Depending on the model, SATEC devices support IEC 61850, including IEC 61850 Ed. 2 in selected series, as well as IEC 60870-5-101/104, Modbus and DNP3.
Selected models are also available with two Ethernet ports, facilitating connection to SCADA systems and increasing communication flexibility in modern utility power applications.

Where is it used?

SATEC solutions for digital substations are used in power facilities where reliable measurement, monitoring and communication with higher-level systems are required.

Typical applications include:

  • substations
  • distribution substations and facilities
  • transmission systems
  • industrial substations
  • modernization of existing substations
  • systems for monitoring network events
  • SCADA integration
  • digitization of measurement and signal data

What does the solution provide?

SATEC solutions for digital substations provide:

  • digitization of substation metering data
  • integration with SCADA and other monitoring systems
  • support for IEC 61850 communication
  • power quality analysis
  • recording of events and disturbances
  • multi-circuit monitoring
  • processing of digital and analog signals
  • more reliable data exchange between devices and systems

Examples of SATEC products for digital substations

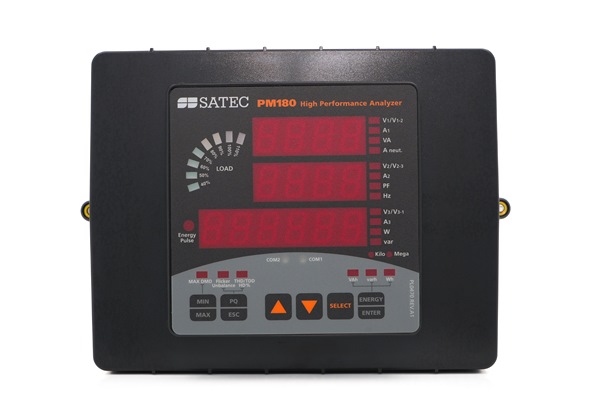

PM180




PM180 is SATEC's All-in-One PQ Analyzer for demanding utility and substation applications. It supports power quality analysis, event and waveform recording, IEC 61850, IEC 60870-5-101/104, DNP3 and Modbus, with optional PMU functionality.

BFM-DFR


BFM-DFR is a device for digital fault recording and multi-circuit monitoring. It is intended for substation digitalization, particularly in modernization projects for existing systems.

PRO Series


PRO Series devices support advanced power monitoring, event analysis and communications in industrial and utility applications. Their modern communication capabilities make them suitable for digital substations and integrated monitoring systems.

EM720




EM720 combines Revenue Meter and PQ Analyzer functions in a single device, making it suitable for substations that require revenue-grade accuracy, power quality monitoring and SCADA integration.
