SATEC power quality analysis solutions

Power quality directly affects equipment reliability, process stability and the security of the power system. Power supply disturbances can cause downtime, equipment damage, unplanned interruptions and additional costs.
SATEC power quality analysis solutions enable the detection, recording and analysis of events such as voltage dips and swells, harmonics, flicker, transients, frequency changes and other network disturbances.
These solutions are used in industry, data centers, electricity distribution, substations, production systems and facilities where power quality is important for continuity of operation.

Where is it used?

SATEC power quality analysis solutions are used in systems where power supply disturbances need to be detected, documented and analyzed.

Typical applications include:

  • industrial plants
  • data centers
  • substations
  • distribution grids
  • facilities with sensitive equipment
  • systems with large or variable loads
  • production plants
  • energy infrastructure

What does the solution provide?

SATEC power quality analysis solutions provide:

  • detection of voltage dips and swells
  • harmonic analysis
  • flicker monitoring
  • transient recording
  • waveform recording
  • preparation of reports in accordance with relevant standards
  • disturbance direction analysis
  • easier identification of the causes of power supply problems
  • documentation of events for further technical action

Examples of SATEC products for power quality analysis

PM180

PM180 is SATEC's All-in-One PQ Analyzer for demanding utility, industrial and critical-infrastructure applications. It provides Class A power quality analysis, transient and waveform recording, standard power quality reports and advanced event analysis.

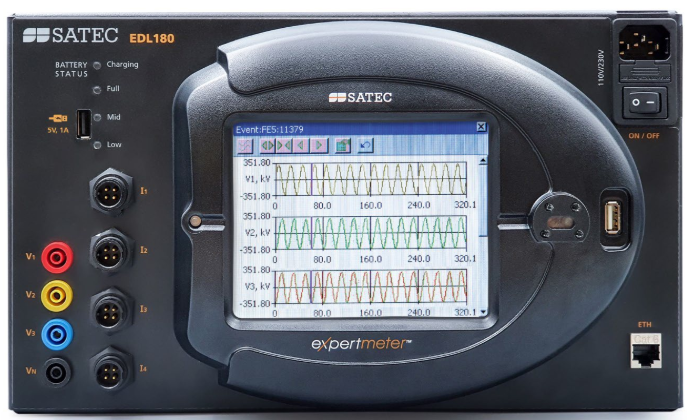

EDL180



EDL180 is a portable version of the power quality analyzer, suitable for field measurements, temporary testing and on-site problem analysis.

EM720

EM720 is a Revenue Meter & PQ Analyzer for applications that require revenue-grade energy metering together with power quality monitoring.

PRO Series

PRO Series devices can be used for advanced power monitoring, event recording and power quality analysis in industrial and utility applications.
